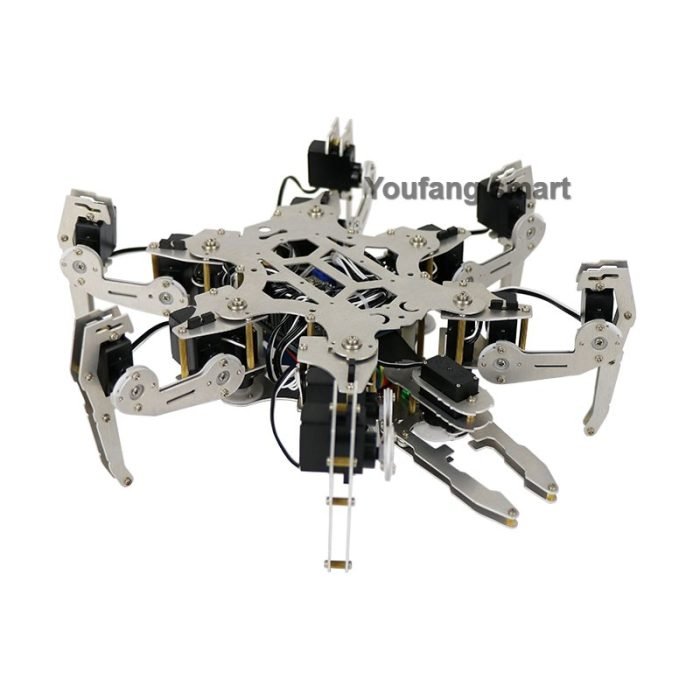

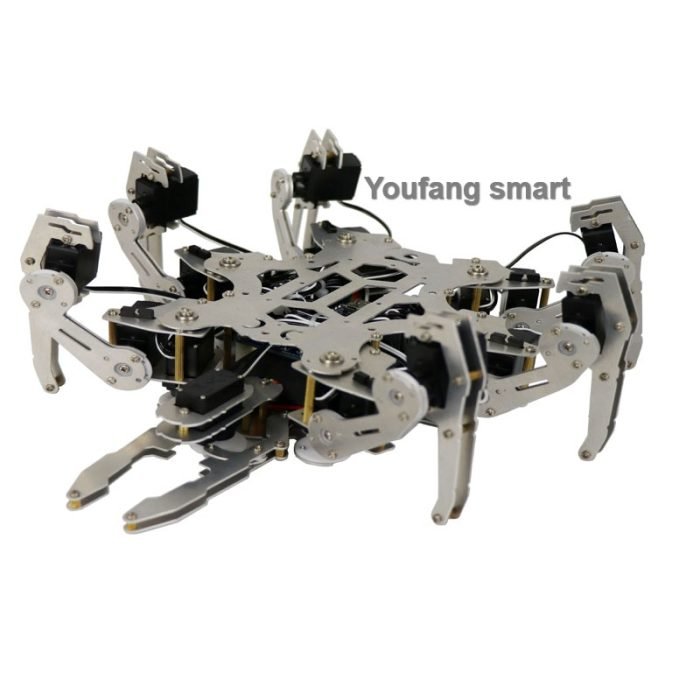

Mini 19 dof Hexapod Bionic Robot
The whole set of structures of spider made by aluminum alloy, appearance is beautiful and simple.
Robot each leg by 3 servo with structural connection, a total of six legs, 18 servos, 1 head pliers use 1 servo, completely from the perspective of bionics structure meet the spiders, spiders and other various crawling movement of the sixb some nature, through the control coordination of the different steering gear made different posture, end to end in time to form a series of ingenious vivid bionic action.
Title: a full set of mini six-legged spider bionic robot 3D simulation programmable intelligent open source 6-legged DIY technology
1. mini hexapod bionic robot, total 19 degrees of freedom;
2. Professional controller with 24 steering gear control channels, integrated Arduino nano board, control source code open, programmable bar;
3. All common steering gear with mechanical clutch function, anti-blocking rotation, anti-jamming;
4. The body adopts 1mm thick hard aluminum alloy material mechanical cutting, small, flexible action.
Debugging process: The user connects the robot to the computer through the data line, controls each joint movement online, and saves and loads corresponding actions. Related information: upper motor software + software operation manual + various action sample programs
② Real-time control by remote control handle
Principle process: After downloading various action programs, the hexapod controller controls the hexapod movement in real time by operating the remote control buttons and joystick, and switches the working mode, such as forward, backward, left, right dance mode, attack mode, etc.
Related information: Wireless Controller Codec Protocol and Program + Controller Hardware Manual.
Principle process: need to add Bluetooth module, through Bluetooth communication control and handle remote control principle is basically the same, can be controlled by button or by gravity induction control.
Related information: app control manual + app android source code.
Product weight: 495g (body weight)

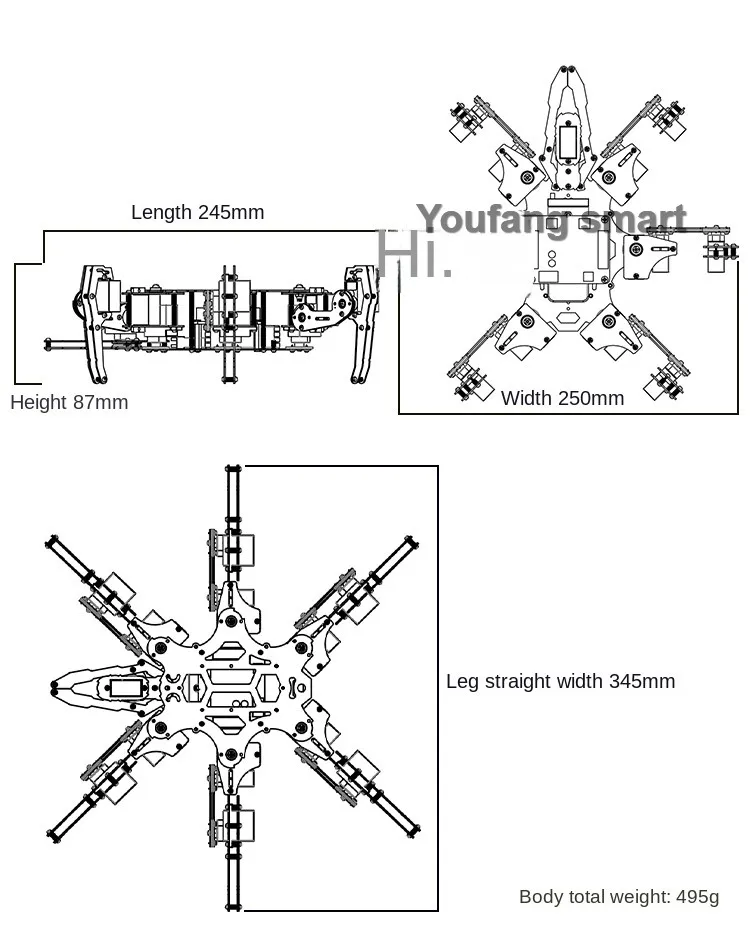

Product size: 245*250*87mm (length, width and height)
Freedom: 19 degrees of freedom (19 digital steering gears)
Communication mode: wireless communication or Bluetooth communication
Control mode: Handle remote control/mobile app control
Power supply: Model aircraft lithium battery 8.4 v 1000ma
Product material: 1mm thickness 6061 aluminum alloy
Product packaging: no text logo carton
A notice:
Robot only: Robot frame + 20pcs Servo (one for gift), without Controller
DIY Kit: This is not assembled, you need to assemble it.

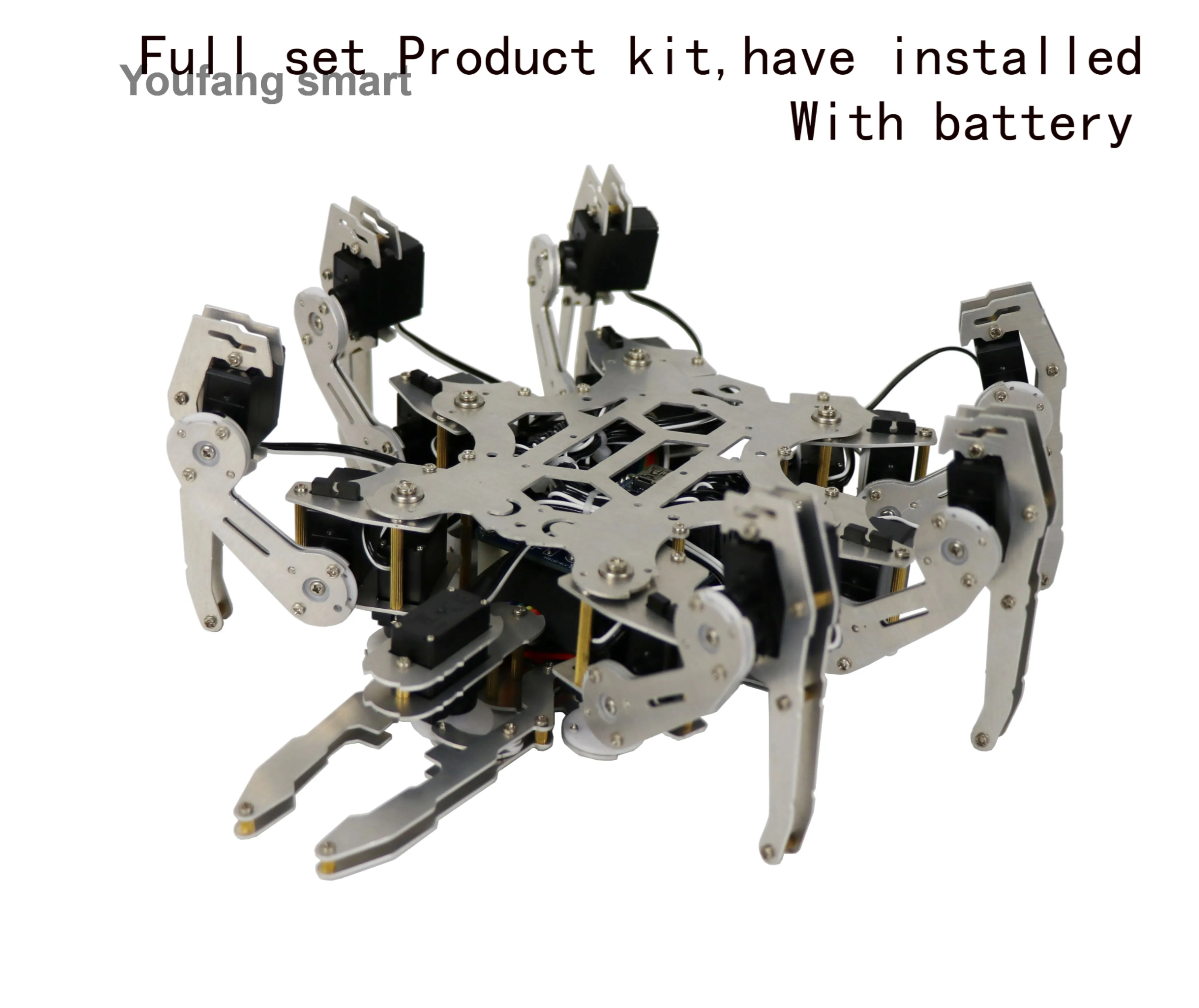

Product Kit: This is assembled, no need to install, you can use it as soon as you receive it.
We offer installation tutorials for free, please leave your email address.
