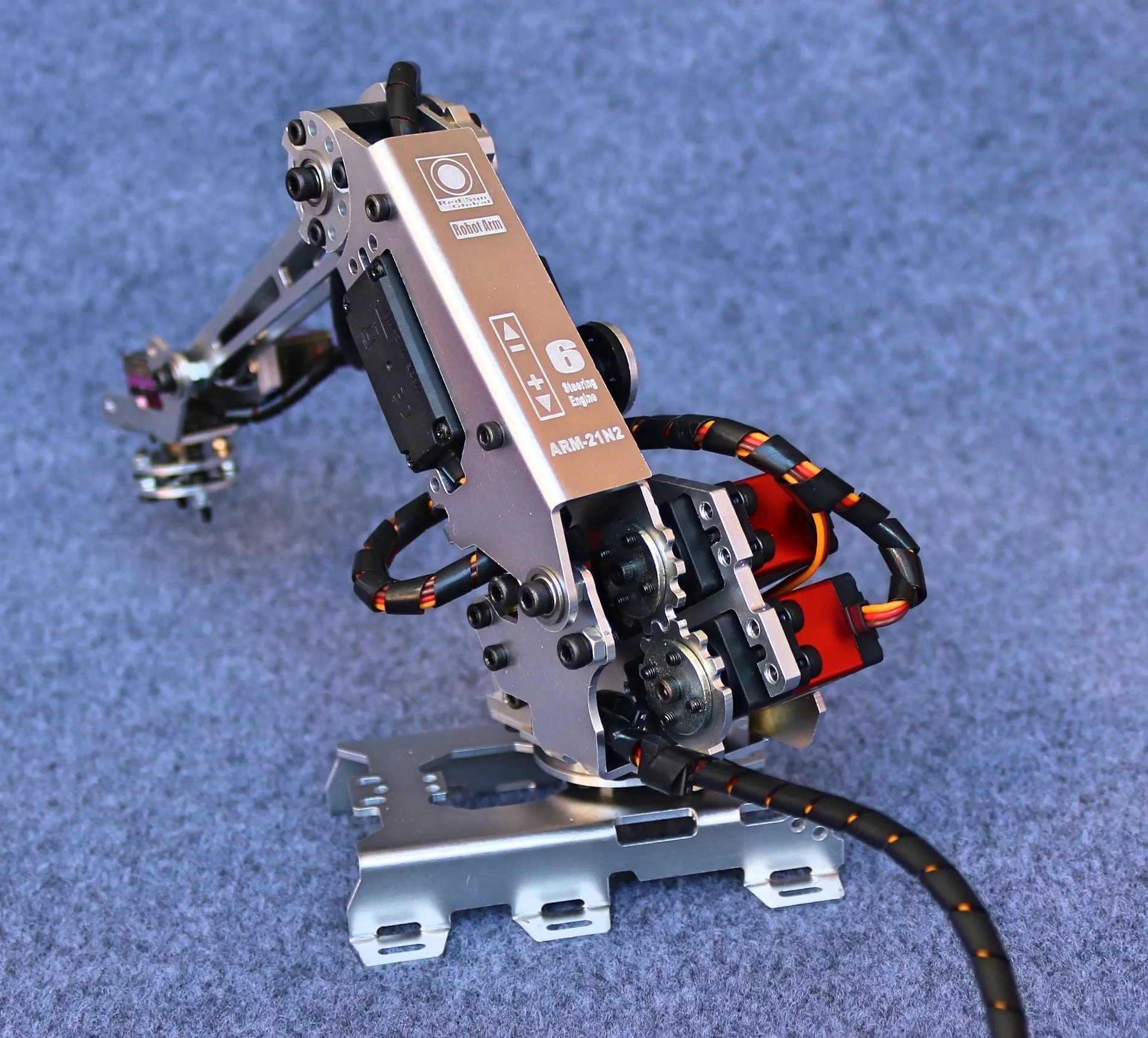

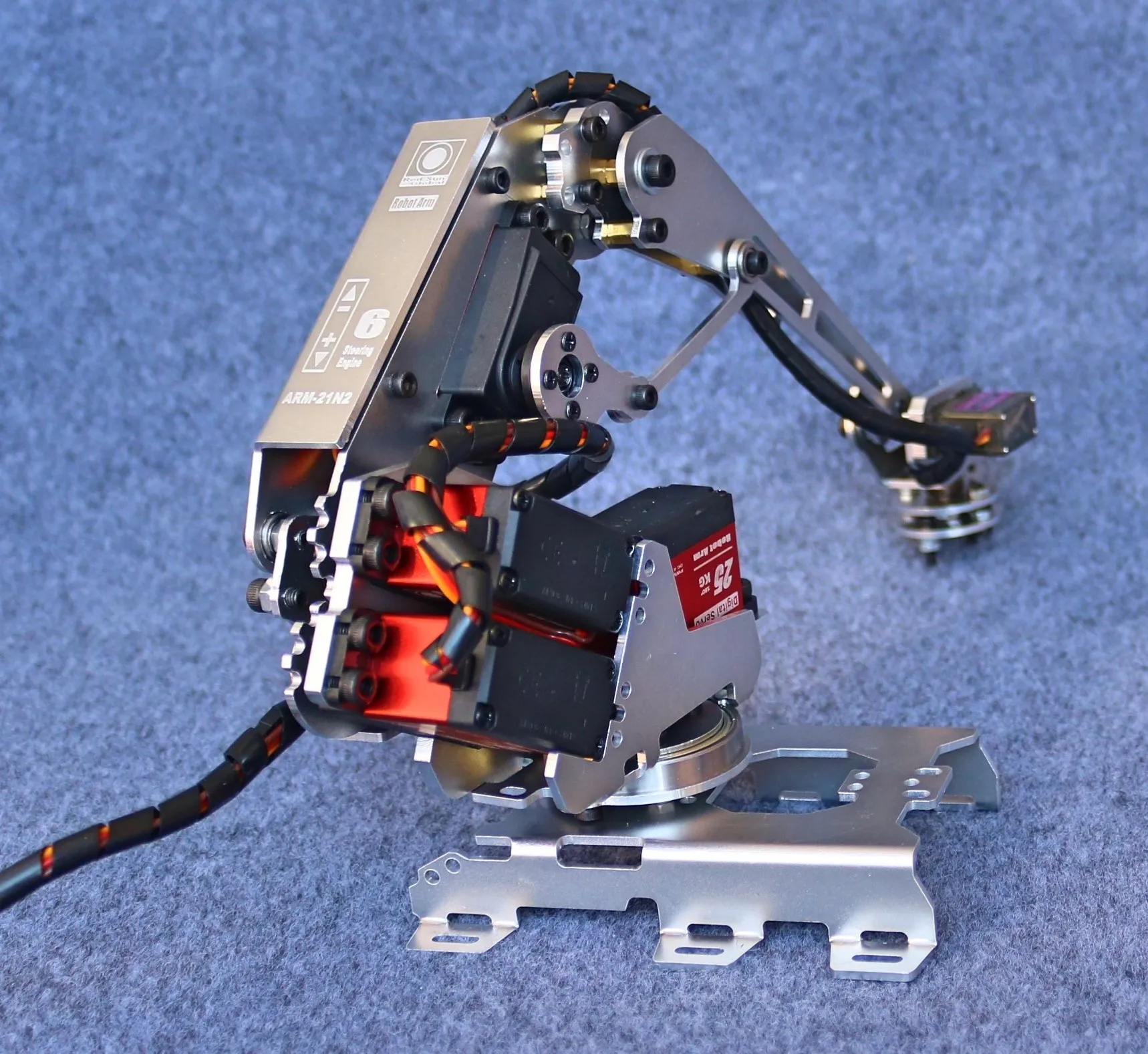

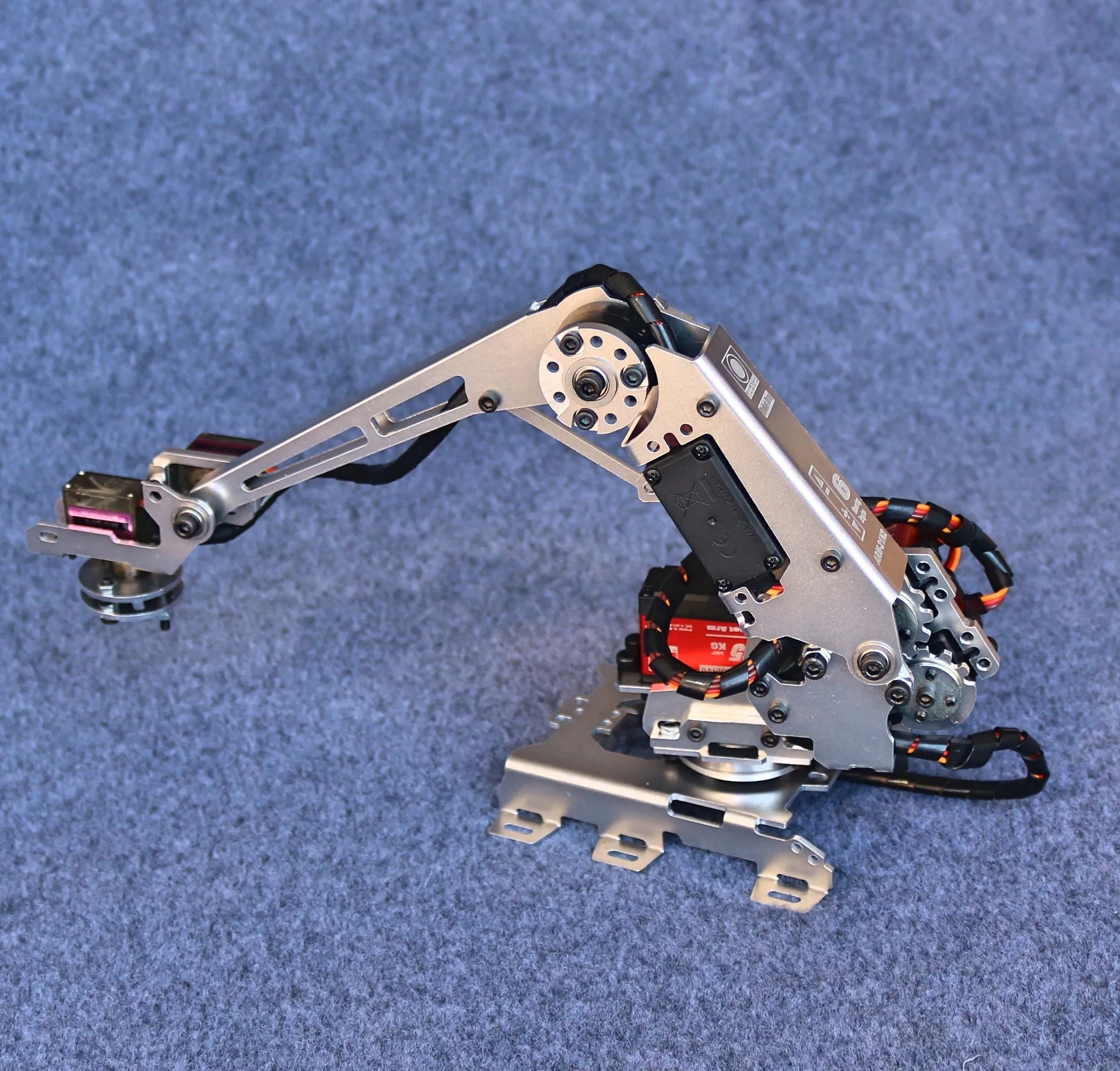

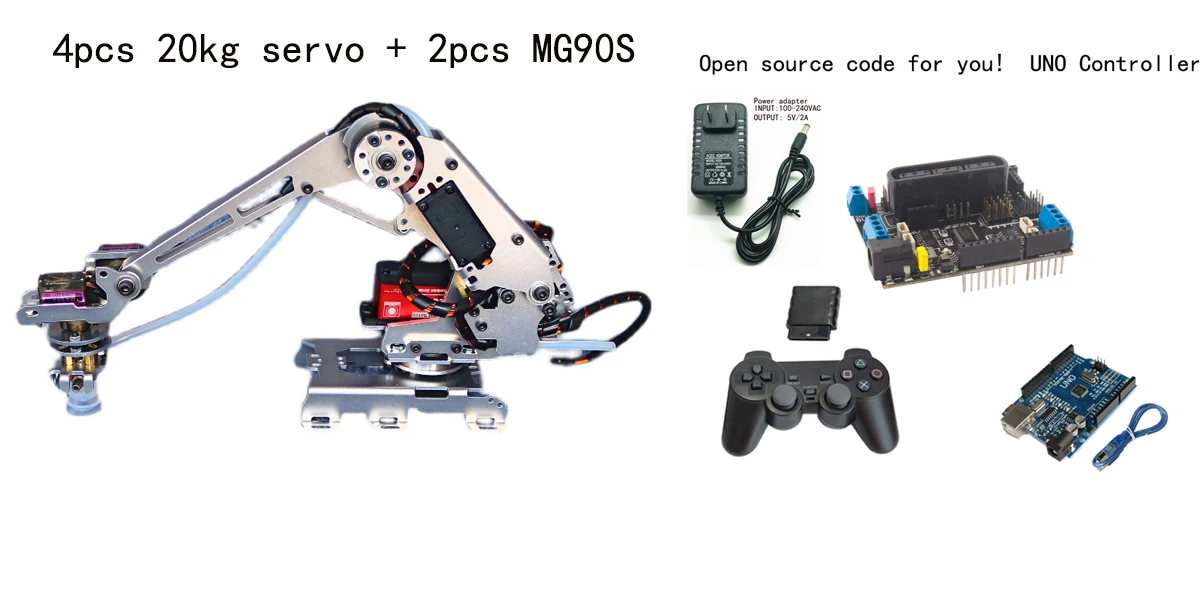

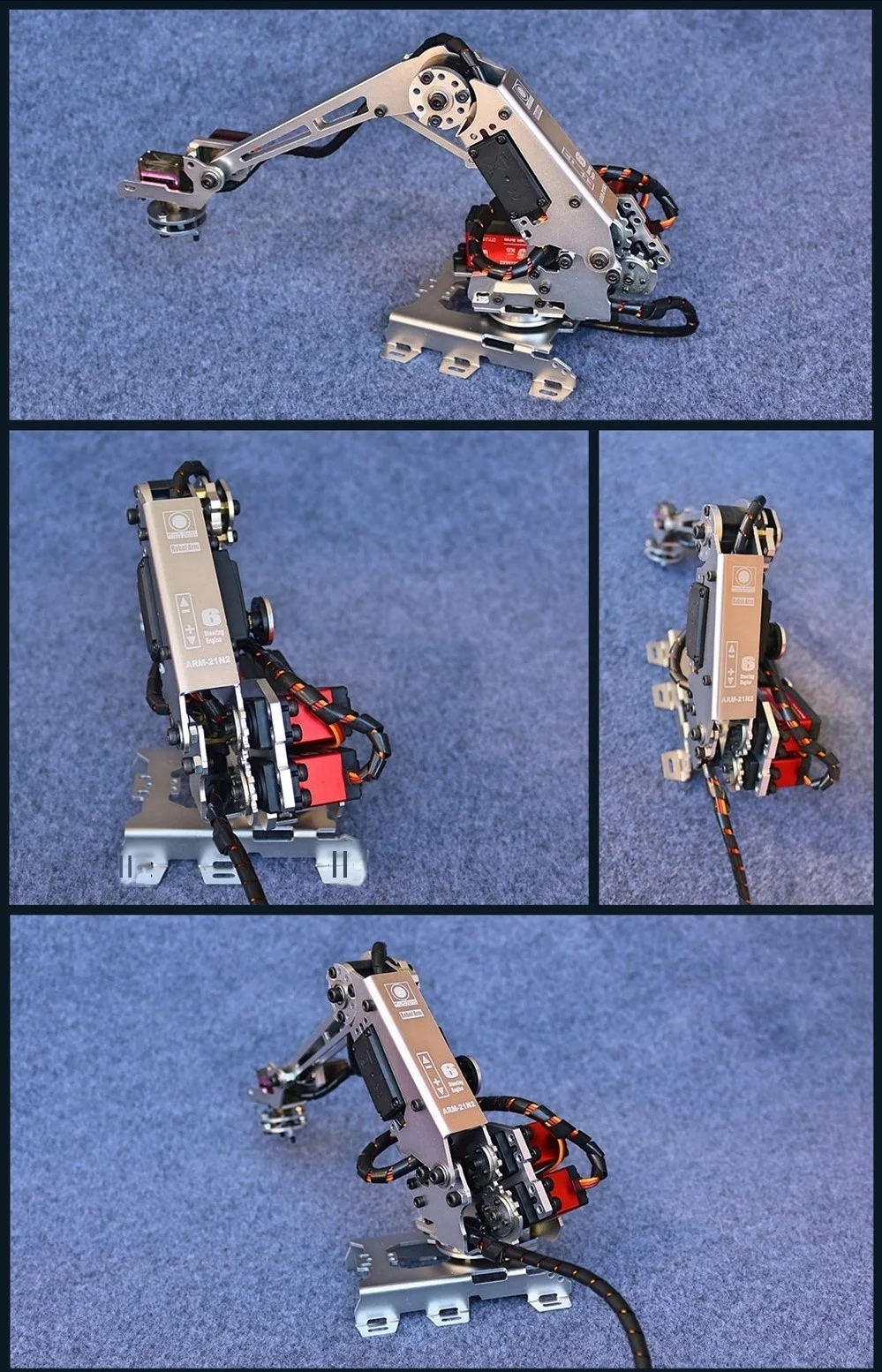

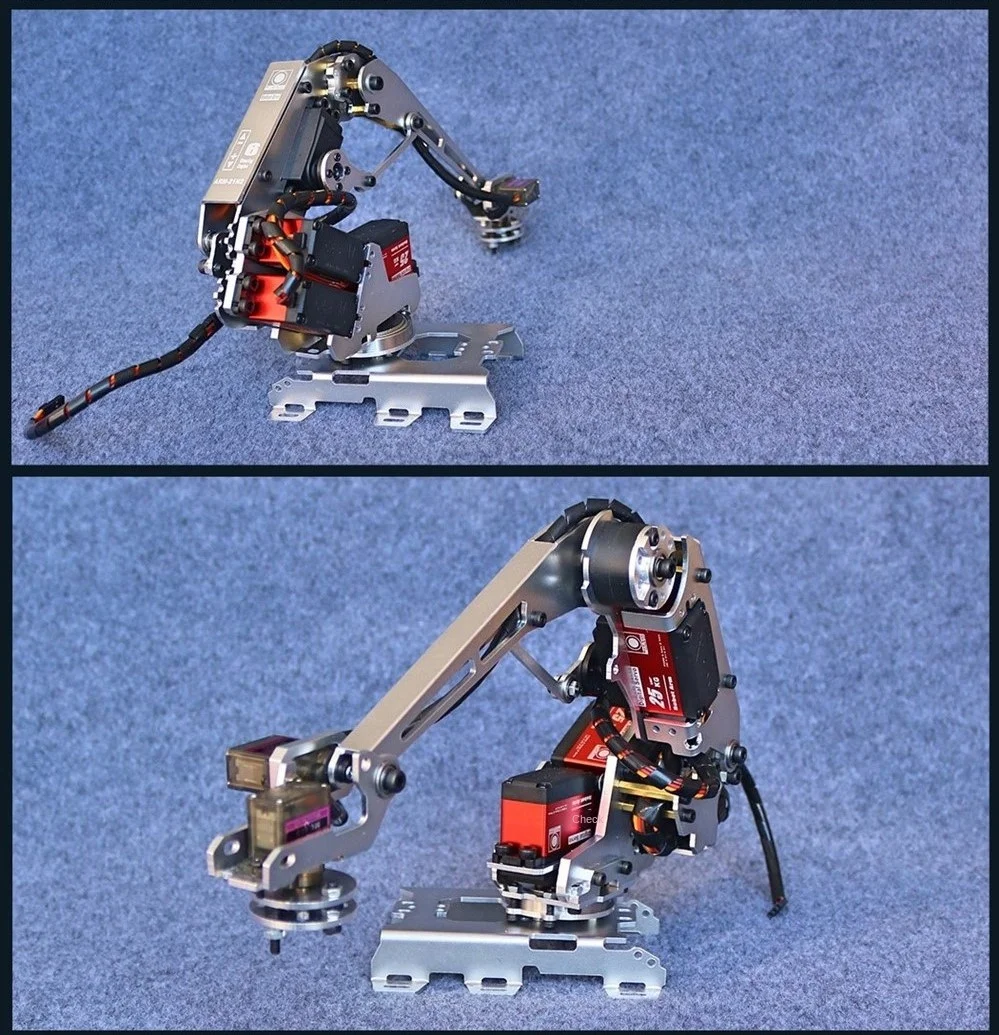

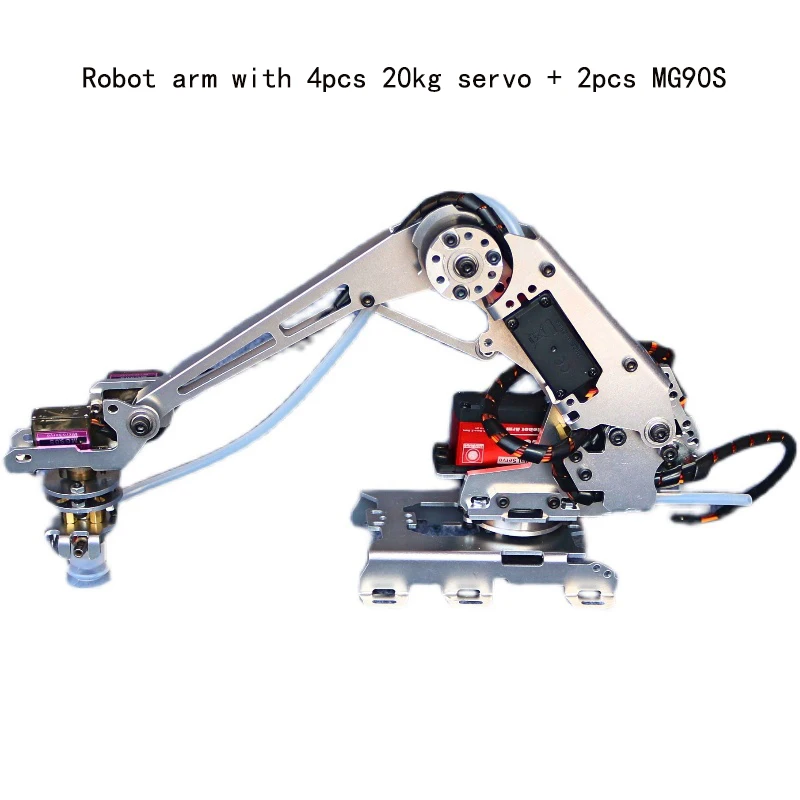

6 dof Robot Arm Suction Cup Manipulator with mg996 mg90s Servos Industrial Robot Arm Model for Arduino Robot DIY Kit Stalk Toy

6 dof Robot Arm Suction Cup Manipulator with mg996 mg90s Servos Industrial Robot Arm Model for Arduino Robot DIY Kit Stalk Toy

Robot Arm Robot Arm Model Multi-degree of freedom Manipulator Industrial robot Arm Model 222

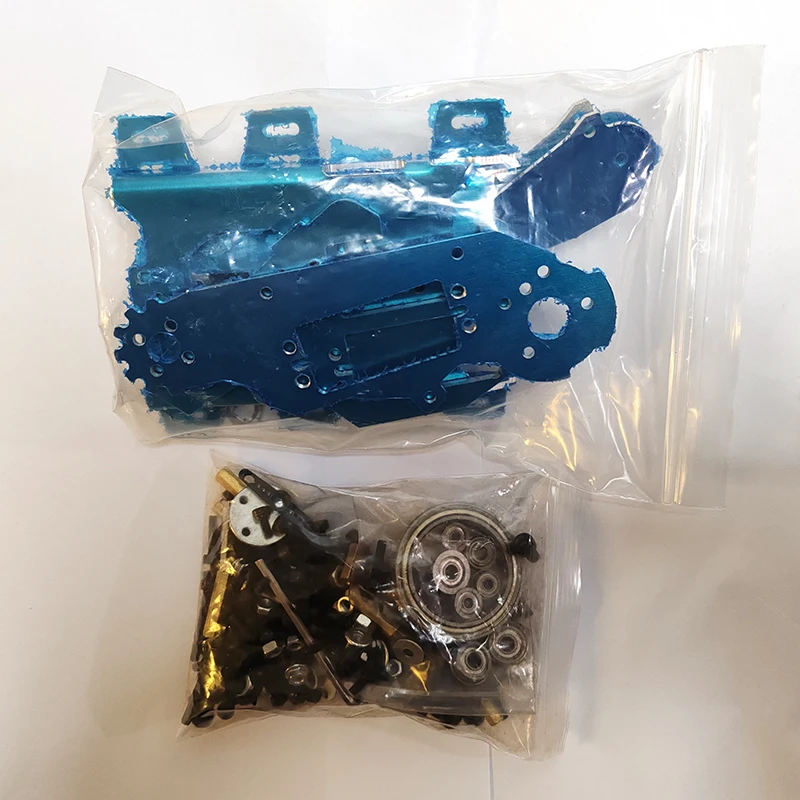

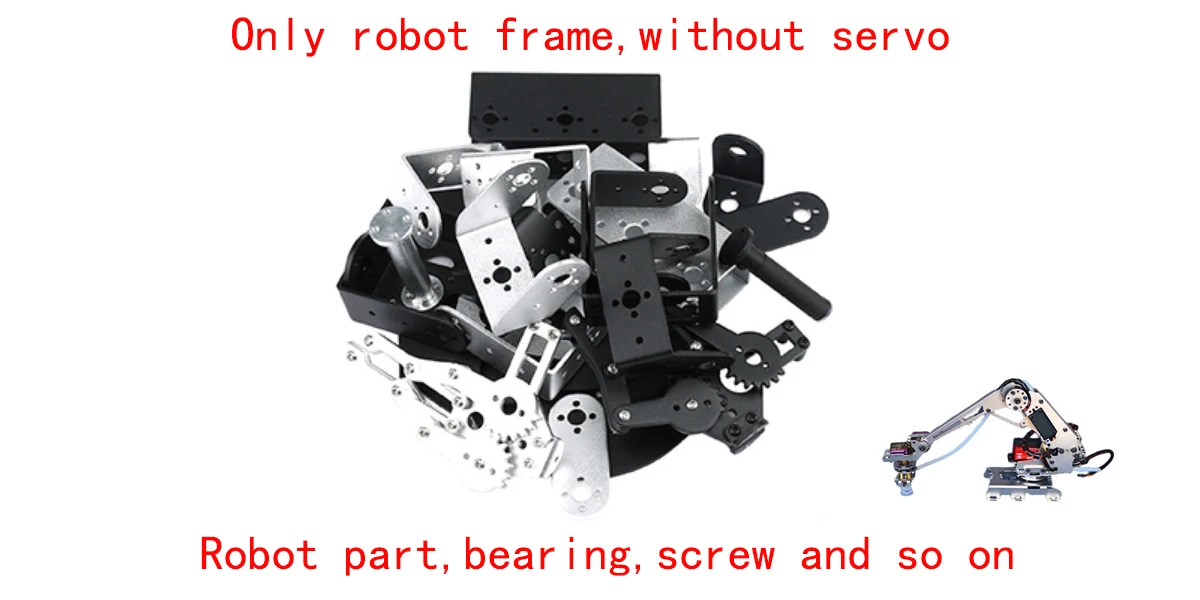

The length of the robot arm is not made longer, the better. The longer, the load on the steering gear is also large, directly affecting the service life of the steering gear, the load is too large and burns the steering gear circuit, damages the steering gear. The performance of the mechanical arm has a direct impact, and the longer the mechanical arm, the smaller the force, the smaller the load. The mechanical arm is calculated to the precise size according to the gear load of the universal metal steering gear and the steering gear circuit load, so as to exert the better performance of the steering gear and improve the mechanical properties of the mechanical arm. Note: All packages are delivered in pieces, users need to assemble and debug by themselves (assembly instruction will be provided), this product does not include the control circuit and suction cup holder, users can purchase the control circuit from other parties

25kg metal steering
gear Steering gear motherboard: Digital Controller Steering gear size: 40×20.5×40.05 Weight: 62g ± 5% Working voltage: 4.8-7.2V (instant 8.2V) Output transmission: metal teeth Double bearing Idle speed: 0.145-0.185sec/60° Locking torque: 25.5kg-cm Pulse width: 500-2500usec Rotation angle: 180° Dead zone width: susec Center position: 1500usec Output shaft: 25t Output shaft hole: m3 Idle current: 220-280mA Clogging current: 2250-2850mA Waterproof level: mild waterproof Body chale: Aluminum alloy (red) + plastic (black)

Steering gear motherboard: Digital controller Steering gear size: 40×20.5×40.05 Weight: 56g ± 5% Output gear: Metal teeth Double bearing Working voltage: 4.8-7.2V Idle speed: 0.14-0.18sec/60° Locked torque: 20.5kg.cm

Pulse width: 500-2500usec Rotation angle: 180° Dead zone width: 5usec Center point position: 1500usec Output shaft: 25t Output shaft hole: m3 Idle current: 210-260ma

Clogging current: 2100-2700ma Waterproof level: Grade mild waterproof Body chale: Aluminum alloy + plastic
