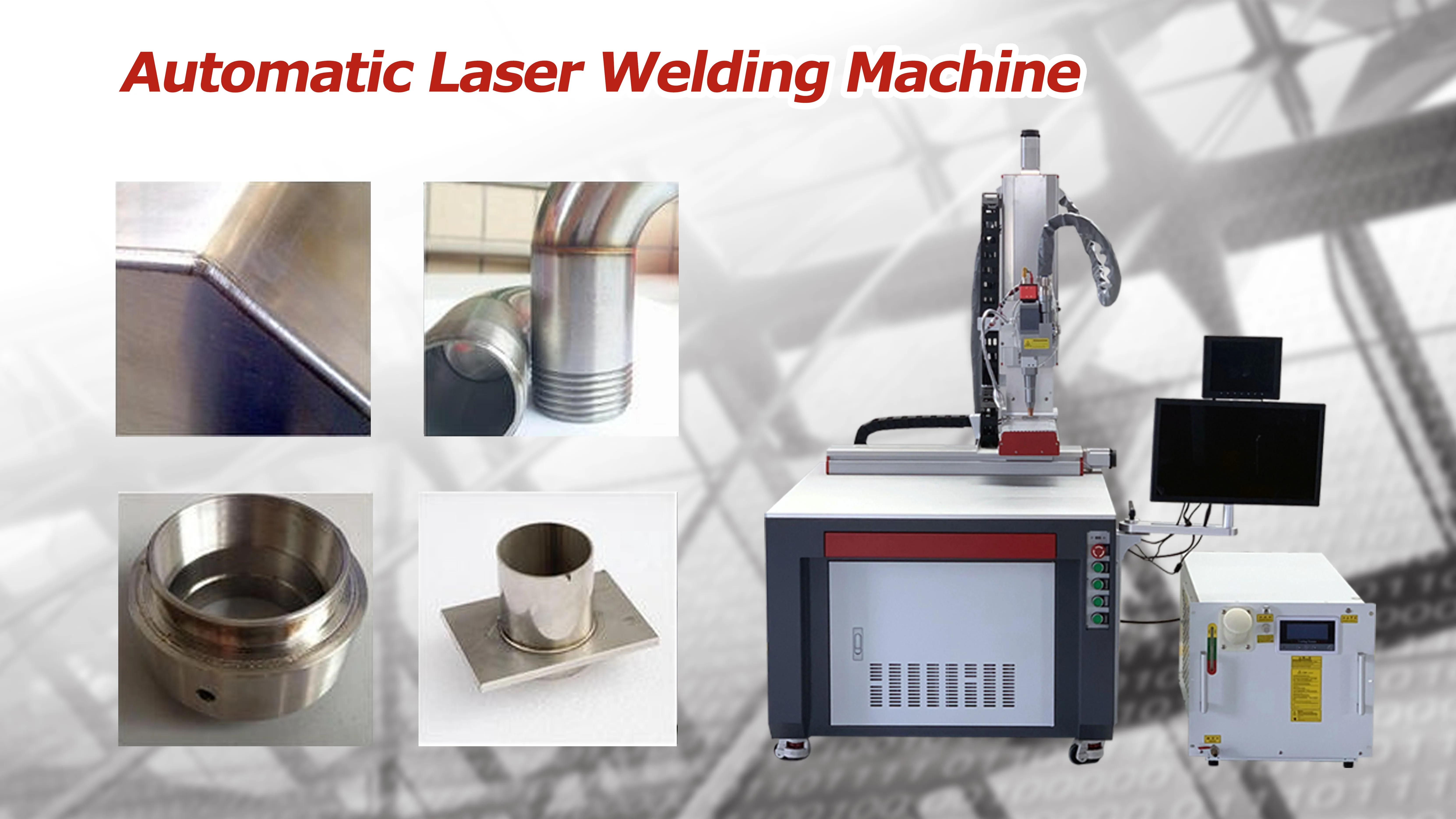

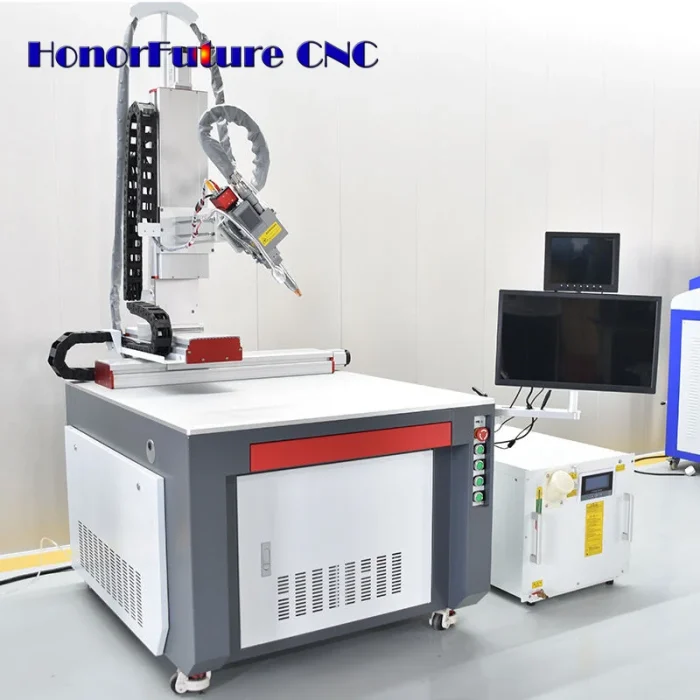

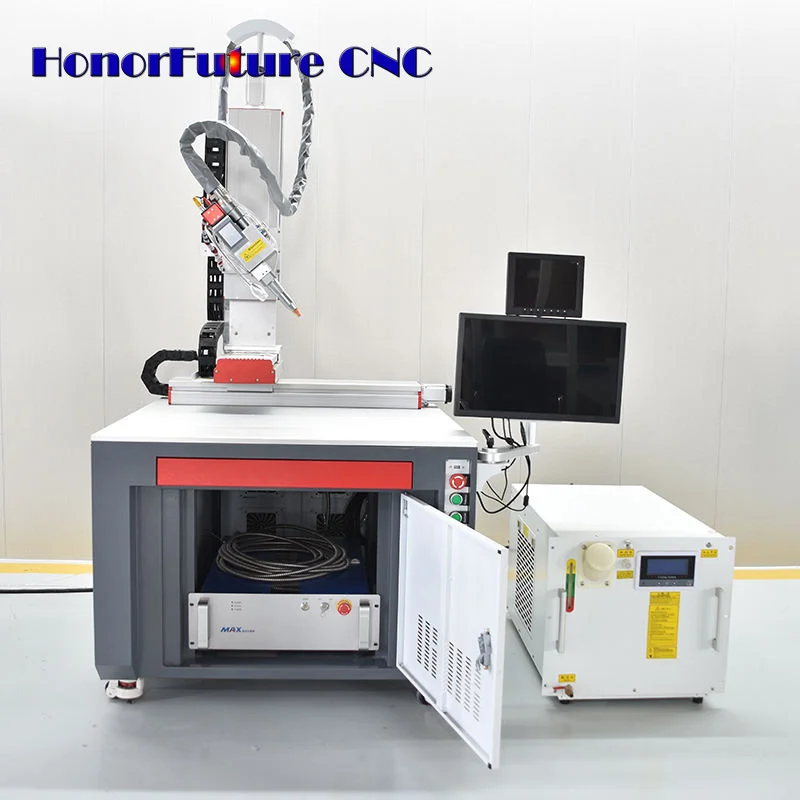

Platform automatic robot laser welding machine
Hote sales 4 axis 5 axis 6 axis platform automatic cnc fiber laser welding machine price
Optical fiber laser welding machine equipment, with a world-class product quality. The welding process is precise, high cost performance, used for docking, spot welding, edging, round, round, connection, T-type docking, affinity welding, deep weld, narrow weld, high welding rate. Customizable ability, can be customized according to customer requirements.
specification
|
Model
|
Hfw1000
|
Hfw2000
|
Hfw3000
|
|
Maximum laser power
|
1000w
|
2000w
|
3000w
|
|
wavelength
|
1070nm ± 10nm
|
1070nm ± 10nm
|
1070nm ± 10nm
|
|
pulse width
|
continuous light output
|
continuous light output
|
continuous light output
|
|
number of fiber optic outputs
|
1 channel
|
1 channel
|
1 channel
|
|
Weld depth
|
Maximum 3mm/stainless steel
|
Maximum 4.5mm/stainless steel
|
Maximum 6mm/stainless steel
|
|
Weld depth
|
Maximum 1.5mm/aluminum alloy
|
Maximum 3mm/aluminum alloy
|
Maximum 4.5mm/aluminum alloy
|
|
overall performance
|
<4.8 kW
|
<10kw
|
<10kw
|
|
targeting and positioning
|
Red light indicator (ccd optional)
|
Red light indicator (ccd optional)
|
Red light indicator (ccd optional)
|
|
power consumption
|
Ac220v ± 10%/3p pe
|
Ac380v ± 10%/3p pe
|
Ac380v ± 10%/3p pe
|
|
cooling process
|
water cooling
|
water cooling
|
water cooling
|
|
fiber optic model
|
Qbh
|
Qbh
|
Qbh
|
|
fiber length
|
10m
|
10m
|
10m
|
specification
