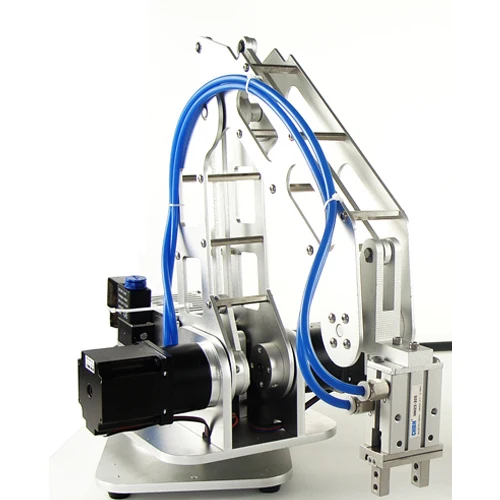

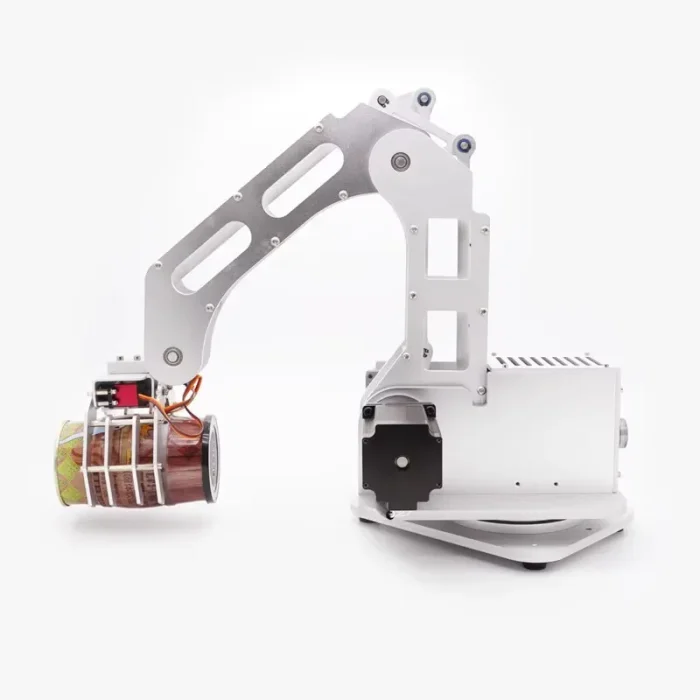

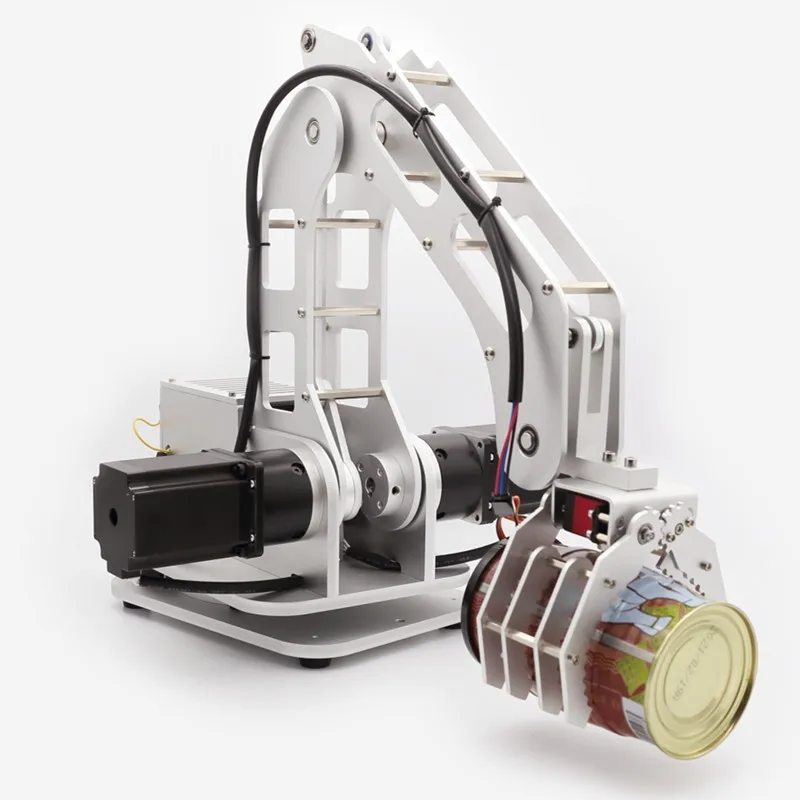

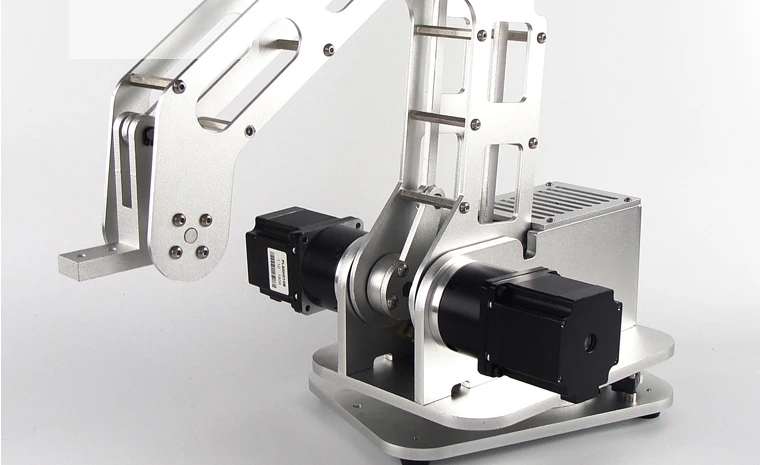

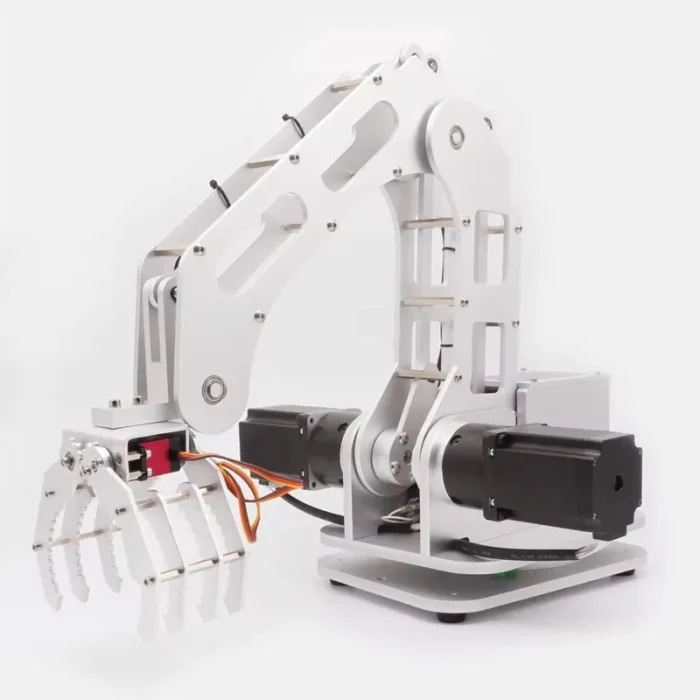

2.5kg payload 4-axis industrial robot manipulator claw gripper desktop large load arm handle multiple control modes automatically
Parameter:
Number of axes: 4
Load: 0.8-2.5kg
Maximum extension distance: 580mm
Repeated positioning accuracy: 0.3mm
Communication interface: wifi
Supply voltage: 240-V, 50 / 60Hz
Power consumption: 12v/5adc
Power: 60w max
Working temperature: -10 ℃ -60 ℃
shaft working parameters
Shaft; Working range; Speed (250g load)
Axis motion parameters; 0° to +85°; 320°/s
Axis 1 base; -10° to +95°; 320°/s
Axis 2 boom; +90° to-90°; 480°/s
Rotation of axis 4; +90° to-90°; 480°/s
Shipping list:
Robots with motors:
With controller:
Recommended age: 14+ years
Topic: Transport Warning: None
Number of axes: 4
Load capacity: 0.8–2.5 kg
Maximum expansion distance: 580 mm
Playback positioning precision: 0.3 mm
Communication interface: WLAN
Voltage: 100–240 V, 50/60 Hz
Input voltage: 12 V/5 A Power: 60 W
MAX Operating temperature: -10 ℃ -60 ℃
**Robust and versatile construction**

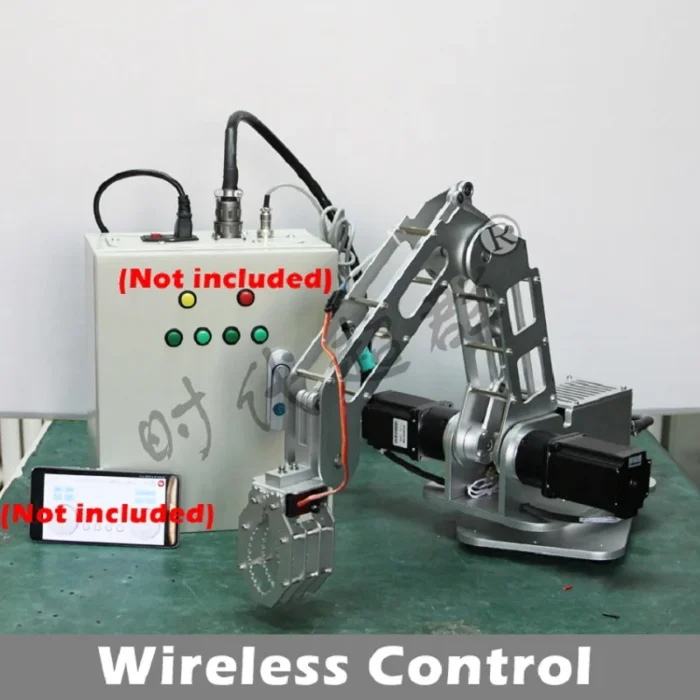

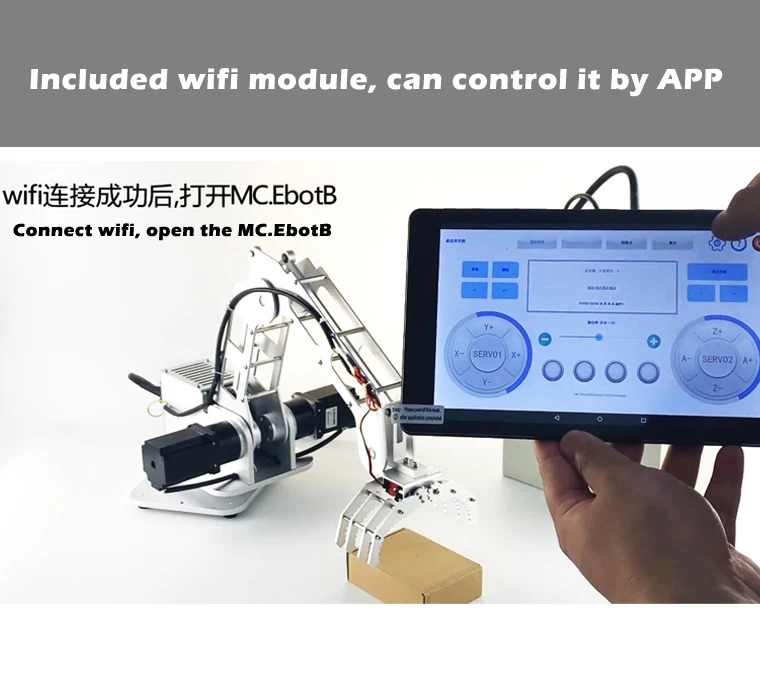

The 2.5 kg PayLoad 4-axis industrial robot manipulator is a robust tool for use in industry and as a programmable toy. With a maximum extension distance of 580 mm and a precise playback positioning precision of 0.3 mm, this robot offers high performance for various applications. The communication interface via WLAN enables easy control and integration into existing systems.
**Adaptability and user-friendliness**
This robot is equipped with a variety of control modes, making it a flexible tool for different applications. Its ease of use and the ability to precisely control speed and positioning make it an ideal partner for use in industry as well as for home use. Its robust construction and high load capacity of 0.8 to 2.5 kg make it a reliable partner for transporting objects.
**Easy integration and high performance**
The robot is supplied with a controller and motors and is therefore ready for use. The easy installation and the high power of 60 W MAX make it an attractive product for use in industry as well as for home use. The operating temperature of -10 ℃ to 60 ℃ enables reliable performance even in extreme conditions.
