The world of robotics is evolving rapidly, and hands-on learning is the best way to stay ahead. Our 500g Robotic Arm Kit is designed for hobbyists, students, and engineers who want to explore industrial automation in a compact, user-friendly package. Whether you’re a beginner learning robotics or a professional prototyping a new project, this kit provides precision, flexibility, and real-world applications—all in an affordable, easy-to-assemble format.
With a 500g payload capacity, programmable movements, and multiple mounting options, this robotic arm is perfect for tasks like pick-and-place operations, light assembly, and educational demonstrations. The kit includes everything you need—servos, controllers, grippers, and detailed instructions—so you can start building right away.
Detailed Guide to the 500g Robotic Arm Kit
1. Overview of the 500g Robotic Arm Kit

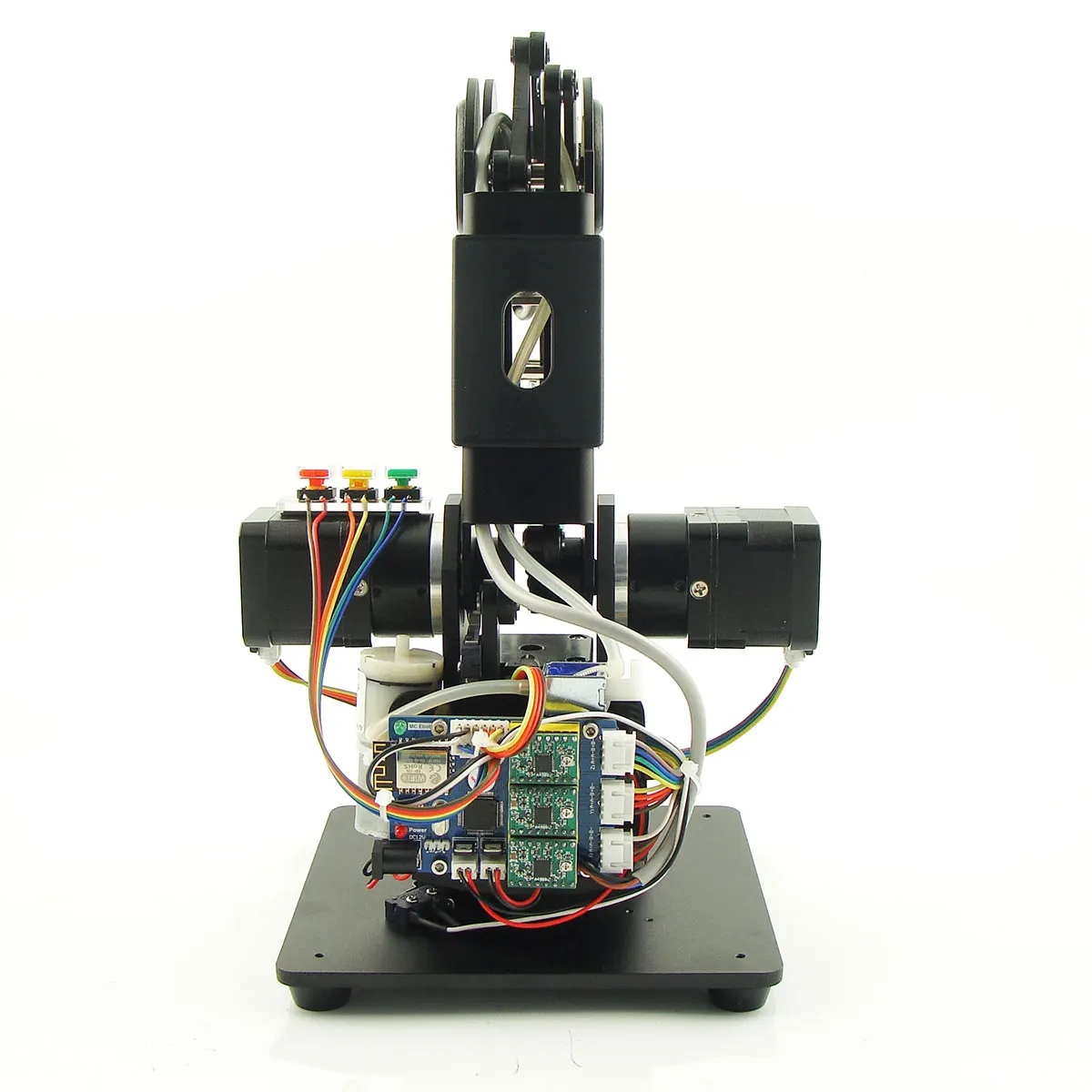

The 500g Robotic Arm Kit is a lightweight, precise, and user-friendly system designed for educational, experimental, and light-industrial applications. It’s engineered with a high-strength aluminum alloy frame, reliable servo motors, and a versatile gripper mechanism capable of holding up to 500 grams of payload. It features six degrees of freedom (DOF), mimicking the movement of industrial robot arms and allowing complex, human-like articulation.
Key Specifications:
- Payload Capacity: 500g
- DOF: 6
- Construction: Aluminum Alloy
- Control System: Microcontroller compatible (Arduino, Raspberry Pi, etc.)
- Power Supply: 12V/5A
- Communication: USB, Serial, or Bluetooth modules (depending on configuration)
- Programming Support: Arduino IDE, Python, ROS-compatible
2. Unboxing and What’s Included
When you purchase the 500g Robotic Arm Kit, you can expect the following components:
- Pre-machined aluminum arm segments
- Servo motors (typically MG996R or comparable)
- Servo brackets and joints
- Gripper or claw with grip control
- Base plate with rotational servo
- Wiring set with connectors
- Power supply and adapter (region-specific)
- Controller board (optional: Arduino Mega/Raspberry Pi)
- User manual and assembly guide
Optional add-ons might include Bluetooth modules, camera mounts, suction grippers, or conveyor belt accessories for extended automation experiments.
3. Assembly Guide
Step-by-step Instructions:
- Base Assembly: Secure the rotational servo to the base plate and connect the lower arm segment.
- Joint Assembly: Attach the elbow and wrist sections using the servo brackets. Ensure servo horns are aligned correctly for neutral positioning.
- Gripper Installation: Mount the gripper or end effector at the final joint, connect wires to control rotation and grip.
- Wiring: Carefully route servo cables to avoid tangling and interference with motion. Connect to controller board according to the wiring diagram.
- Controller Setup: Load the basic servo test script onto your controller to test individual movements before proceeding to full control logic.
Tips:
- Always test servo movement with low-voltage signals first.
- Use thread-lock or screws to secure mechanical joints to avoid slippage.
4. Programming and Control
The 500g Robotic Arm Kit can be controlled through several platforms, depending on your experience level and desired applications.
Beginner Setup (Arduino):
- Use Arduino IDE
- Upload basic servo sweep or predefined motion sequences
- Use potentiometers or joystick modules for manual control
Intermediate (Python/Raspberry Pi):
- Install Python GPIO libraries
- Use real-time feedback from sensors (e.g., IR or limit switches)
- Control the arm via keyboard, GUI, or voice commands
Advanced (ROS Integration):
- Set up a ROS (Robot Operating System) environment
- Calibrate joints using URDF models
- Use MoveIt! for planning and execution
5. Applications and Use Cases
This robotic arm may be compact, but its capabilities are substantial when it comes to functional applications:
- Educational Labs: Great for teaching automation, kinematics, and control systems.
- Smart Prototyping: Integrate into IoT systems, smart sorting, and lightweight material handling.
- AI Experiments: Combine with a camera and neural networks for object recognition and autonomous action.
- Desktop Automation: Automate repetitive tasks like picking components, sorting, or stacking.
- Miniature Assembly Lines: Create demo-scale industrial processes using multiple robotic arms in tandem.
6. Enhancing the Kit with Add-ons
Consider adding the following enhancements:
- Camera Integration: Use OpenCV and machine vision for dynamic targeting.
- Voice Control: Integrate with Alexa or Google Assistant for hands-free operation.
- Wireless Control: Add Bluetooth or Wi-Fi modules to control via smartphone or remote dashboards.
- End Effector Swapping: Design interchangeable tools like suction cups or magnetic pickers for different tasks.
7. Maintenance and Troubleshooting
Regular maintenance ensures the longevity and precision of the robotic arm.
Maintenance Checklist:
- Tighten screws and brackets weekly
- Check servo calibration monthly
- Replace worn servo motors if jittering or overheating occurs
- Update firmware/software regularly to patch bugs
Common Issues and Fixes:
- Servo Not Responding: Check power supply and signal connections.
- Jerky Movement: Reduce load or recalibrate servo positions.
- Connection Issues: Ensure correct COM port is selected in IDE and drivers are updated.
8. Safety Tips and Best Practices
- Always operate the robotic arm in an uncluttered environment.
- Avoid overloading the arm beyond 500g.
- Disconnect power before making hardware adjustments.
- Use voltage regulators to prevent current spikes.
- Keep cables secured to avoid tangling or interference.
9. Final Thoughts: Why Choose the 500g Robotic Arm Kit
The 500g Robotic Arm Kit is not just a learning tool — it’s a launchpad for your creativity and innovation. Its blend of professional-grade mechanics and open-source flexibility makes it a standout option for anyone looking to explore robotics meaningfully. Whether you’re programming your first motion routine or integrating machine learning for adaptive control, this kit can scale with your skills.
